| THREE PHASE GENERATOR SETS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications @1500,50Hz, 230-400V | General Specifications | ||||||||||||
| KV | Engine | Alernator | Unhoused Version(5) | ||||||||||
| Generator Set Model(1) |
Prime |
Standby Power(4) | Fuel Consumption 3/4 L/h |
Dimensions LxWxH,m |
Weight kg(6) | Tank Capacity ,L | Data Sheet | ||||||
| V350C2 | 318 | 350 | 48.1 | TAD1341GE-B | KH02100T | 3.16x1.34x1.81 | 3103 | 470 | |||||
| V400C2 | 355 | 390 | 53.3 | TAD1342GE-B | KH02101T | 3.16x1.34x1.81 | 3103 | 470 | |||||
| V440C2 | 400 | 440 | 62.3 | TAD1344GE-B | KH01484T | 3.34x 1.49 x 1.74 | 3210 | 600 | |||||
| V500C2 | 455 | 500 | 68.1 | TAD1345GE-B | KH01983T | 3.16x1.34x1.81 | 3370 | 600 | |||||
| V550C2 | 500 | 550 | 76.7 | TAD1346GE | KH01983T | 3.34x 1.49 x 1.74 | 3340 | 600 | |||||
| V650C2 | 591 | 650 | 85.2 | TAD1642GE-B | KH02713T | 3.62 x 1.89 x 2.01 | 4180 | 717 | |||||
| V715C2 | 650 | 715 | 98.4 | TWD1644GE | KH02954T | 3.62 x 1.89 x 2.01 | 4420 | 717 | |||||
(1) Also available in the following voltages : 240/415 V, 220/380 V, 127/220 V, 115/220 V.
(2) Also available in the following voltages : 254/440 V, 127/220 V, 120/208 V.
(3) Prime power in direct current for an unlimited number of annual operating hours in variable load applications, in accordance with ISO8528, a 10% overload capacity is
available for a period of 1 hour every 12-hours period of operation, in accordance with ISO3046-1.
(4) Emergency standby power available for supplying emergency power in variable load applications in accordance with ISO8528-1, no overload available for this service.
(5) The dimensions and weights apply to an unhoused generator set without options.
(6) Dry weight, without fuel.
(7) Also available in the following voltages : 220-240 V.
(8) 3000 rpm engine.

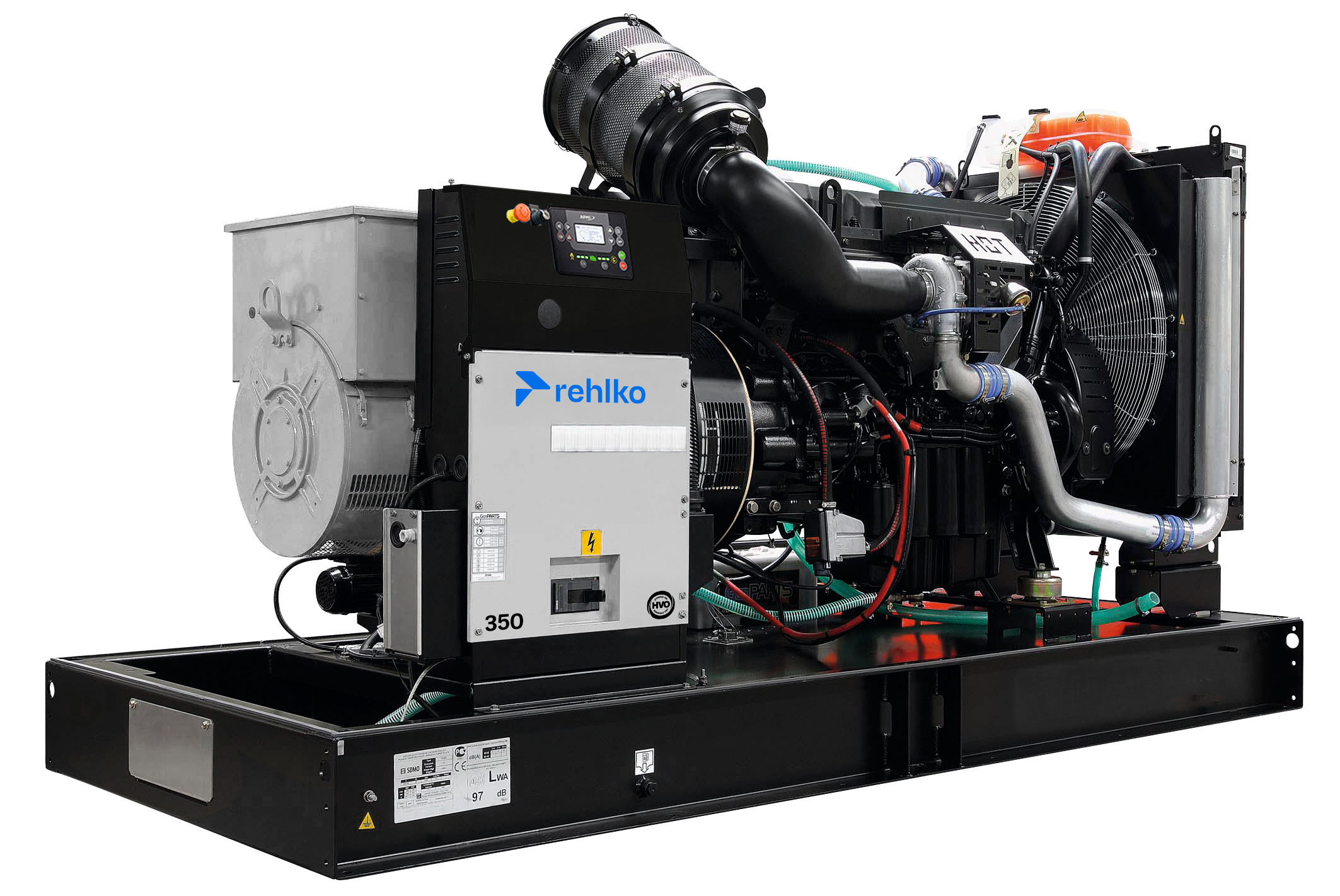

V350

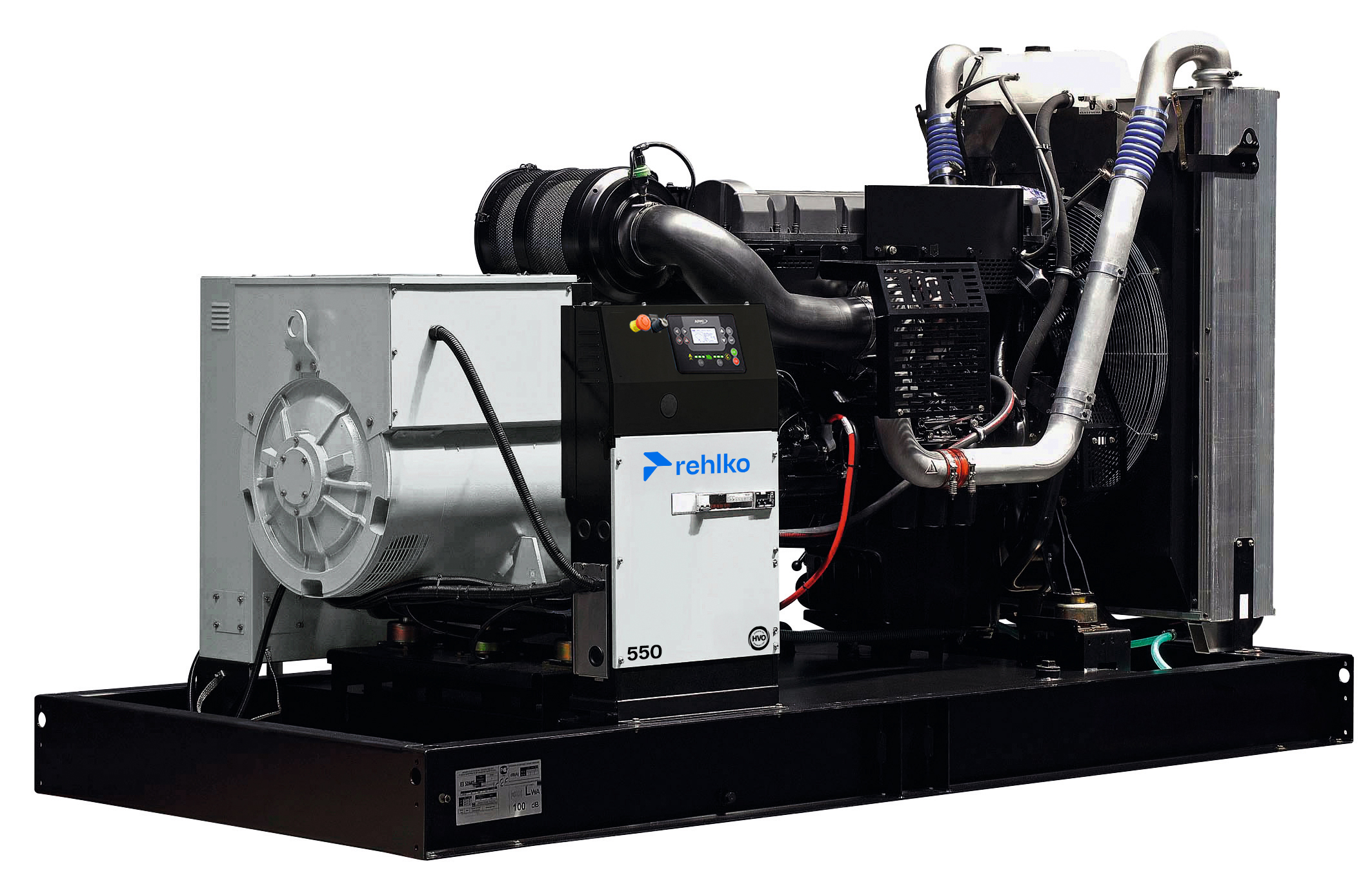

V550

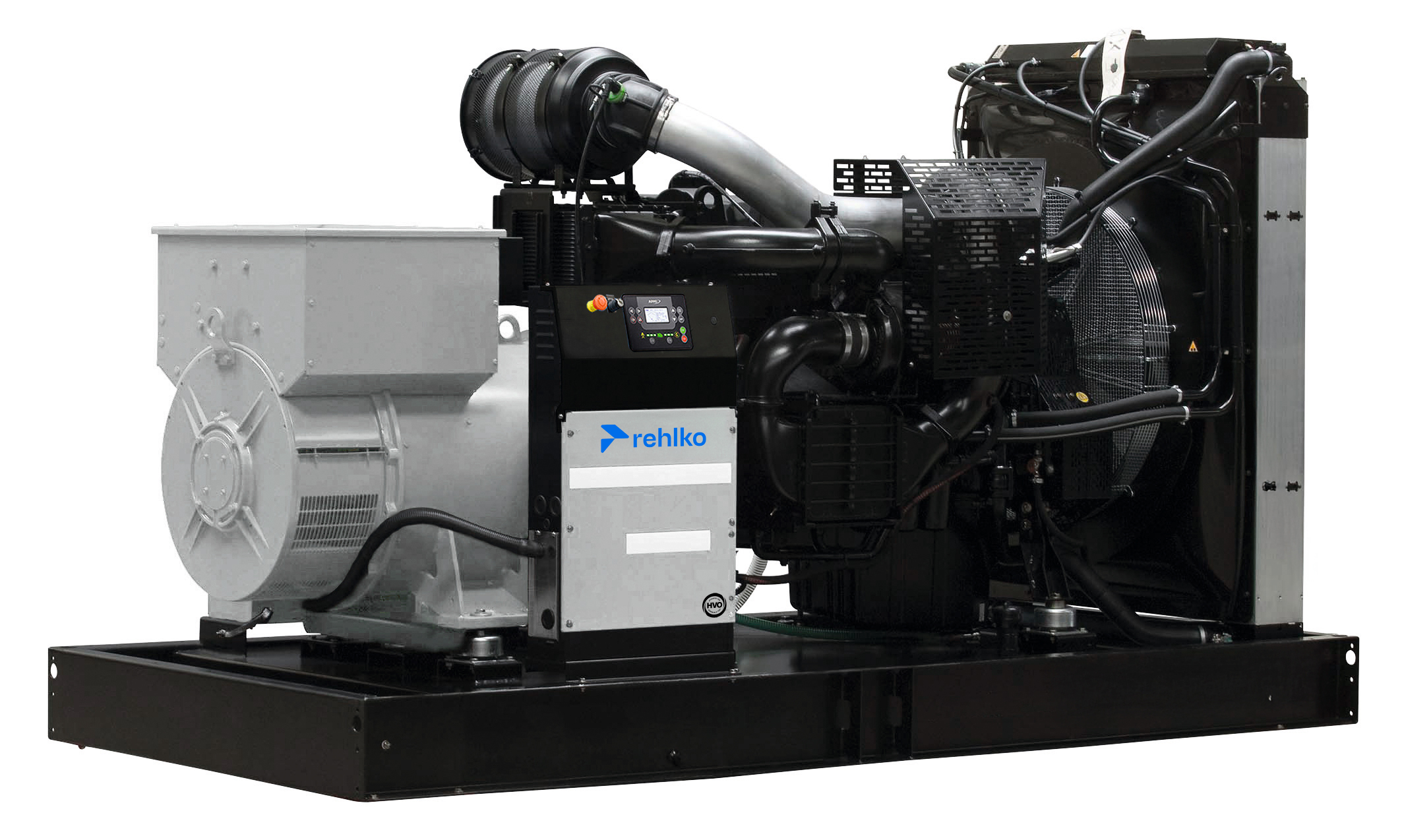

V715
